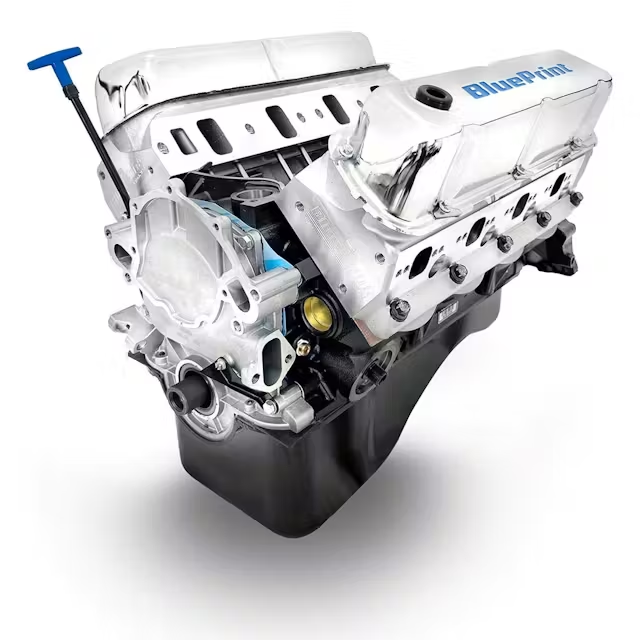

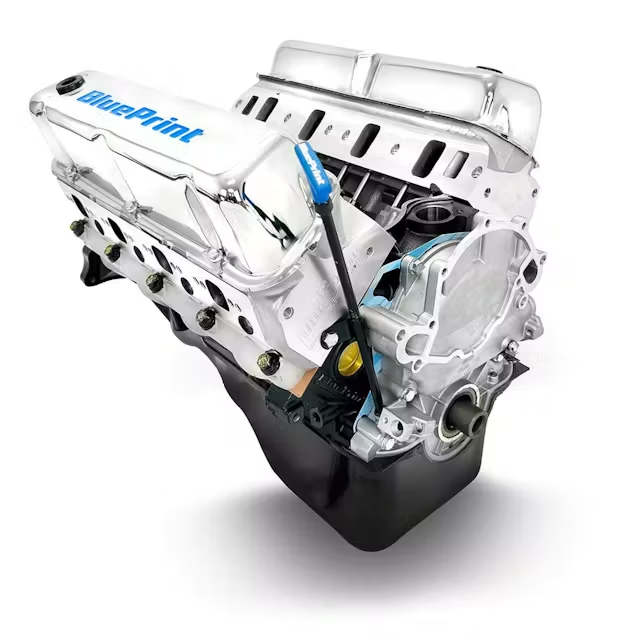

BluePrint BP302CT Small Block Ford 302 Base Crate Engine

BluePrint Engines 302CI Small Block Ford Cruiser Crate Engine Longblock

• HP And Torque: 361 HP / 334 FT LBS
• Compression ratio: 9.4:1
• Aluminum heads
• Hydraulic roller cam
• Cast steel crank
• Hypereutectic pistons

BLOCK:

• NEW BluePrint cast iron block
• 4-bolt main
• 4.000″ bore
• 1-Piece rear main seal
• Mech fuel pump provision: Yes

ROTATING ASSEMBLY:

• 3.000″ stroke
• OEM type 5.090″ connecting rods
• Hypereutectic pistons
• 50oz external balance

CYLINDER HEADS:

• BluePrint aluminum cylinder heads -HP9008
• 60cc chamber
• 2.02″ intake/1.60″ exhaust valves
• 190cc intake/60cc exhaust runners

CAM SPECS:

• Roller cam
• .533 intake / .544 exhaust
• 215 intake / 220 exhaust duration
• @ .050 – 114 degree lobe separation

IGNITION TIMING:

• 10-16 degrees initial, 32-34 total

ALSO INCLUDES:

• Front sump oil pan
• Valve covers
• Timing cover
• Dyno test results shipped with engine

WARRANTY:

• 30 month / 50,000 mile
