Overview
Brand: BluePrint Engines
Manufacturer’s Part Number: BP38321SP
Part Type: Short Block Engines

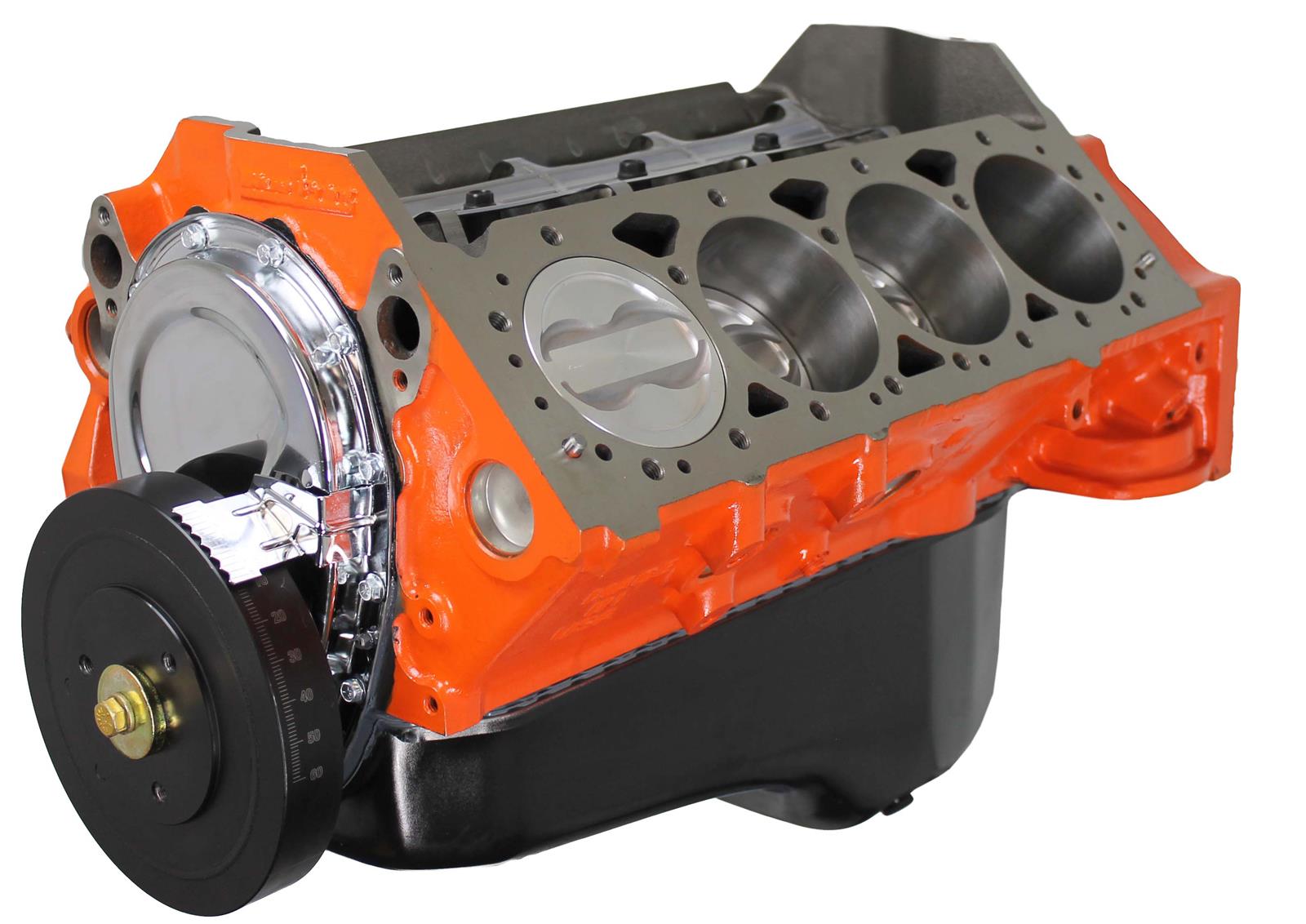

Product Line: BluePrint Engines GM 383 C.I.D. Stroker Short Block Plus Engines
Summit Racing Part Number: MLL-BP38321SP
UPC: 816671020564
Crate Engine Family: Chevy Small Block
Actual Engine Displacement: 6.2L/377
Rear Main Seal Style: 1-piece
Crankshaft Material: Forged steel
Piston Material: Forged aluminum
Short Block Piston Style: Dish
Connecting Rod Material: Forged 4340 steel
Connecting Rod Beam Style: I-beam
Engine Block Material: Cast iron
Main Bolt Style: 4-bolt
Main Journal Type: Chevy 350
Deck Height (in.): 9.025 in.
Engine Balance: Internal/External
Oil Pan Included: Yes
Timing Cover Included: Yes
Harmonic Balancer Included: Yes
Flexplate Included: No
Flywheel Included: No
Assembled: Yes
Remanufactured: No
Quantity: Sold individually.
Notes:
Pistons have a +18cc dish and Hastings moly rings. Includes a high volume oil pump and a hydraulic roller camshaft. Camshaft specifications @0.050: 0.495 in. intake/ 0.502 in exhaust, 220 degree intake/ 224 degree exhaust. Lobe separation is 114 degrees. Internally balanced (neutral) front 8” harmonic balancer and late-style 1986-up style 350 flexplate required.
BluePrint Engines GM 383 C.I.D. Stroker Short Block Plus Engines
BluePrint Engines GM 383 c.i.d. short block plus stroker engines are always balanced and dyno-tested. Whether you’re building a kit car, race car, hot rod, or just a sweet old memory, BluePrint Engines are ready to add a lot of muscle to your fun!
Block details:
* 4-bolt main
* Passenger side dipstick
* Cylinder wall thickness “sonic-tested”
* Cylinders computer-honed to tolerance of .0002 in.
Rotating assembly details:
* Crankshaft
* Pistons
* Connecting rods
* Moly rings
* High-volume oil pump
* Heavy-duty single roller timing set
* Harmonic balancer
* Hydraulic roller camshaft and lifters
* Oil pan
* Brass freeze plugs
