Overview
Brand: FTI Performance
Manufacturer’s Part Number: BPG5
Part Type: Automatic Transmissions
Product Line: FTI Performance Bracket Series Powerglide Level 5 Transmissions
Summit Racing Part Number: FTI-BPG5
UPC: 887753809445
Number of Gears: 2
Bellhousing Bolt Pattern Manufacturer: Chevy
Transmission Shift Pattern: Forward
Valve Body Style: Full manual
Transmission Advertised Horsepower Rating: 1,500
Torque Converter Included: No
Flexplate Included: No
Transmission Controller Included: No
Wiring Harness Included: No
Transmission Cooler Included: No
Trans-Brake Included: Yes
Lockup Compatible: No
Transmission Pan Style: Deep
Transmission Pan Material: Aluminum
Transmission Pan Finish: Natural
Tailshaft Length (in.): 11.250 in.
Yoke Style: Slip-on
Input Spline Quantity: 30
Input Shaft Material: ER100
Input Shaft Style: TH350/400
First Gear Ratio (Automatic Transmissions): 1.80
Clutch Hub: Billet Steel
Transmission Case Style: Aftermarket
Transmission Case Material: Aluminum
Transmission Case Finish: Natural
Transmission Shield Built In: No
Flexplate Shield Built In: No
Fluid Fill Location: Case
Transmission Fluid Included: No
Dipstick Included: No
SFI Rating: SFI 4.1/ 30.1
Remanufactured: No
Quantity: Sold individually.
Notes: Includes a hardened 4340 output shaft.

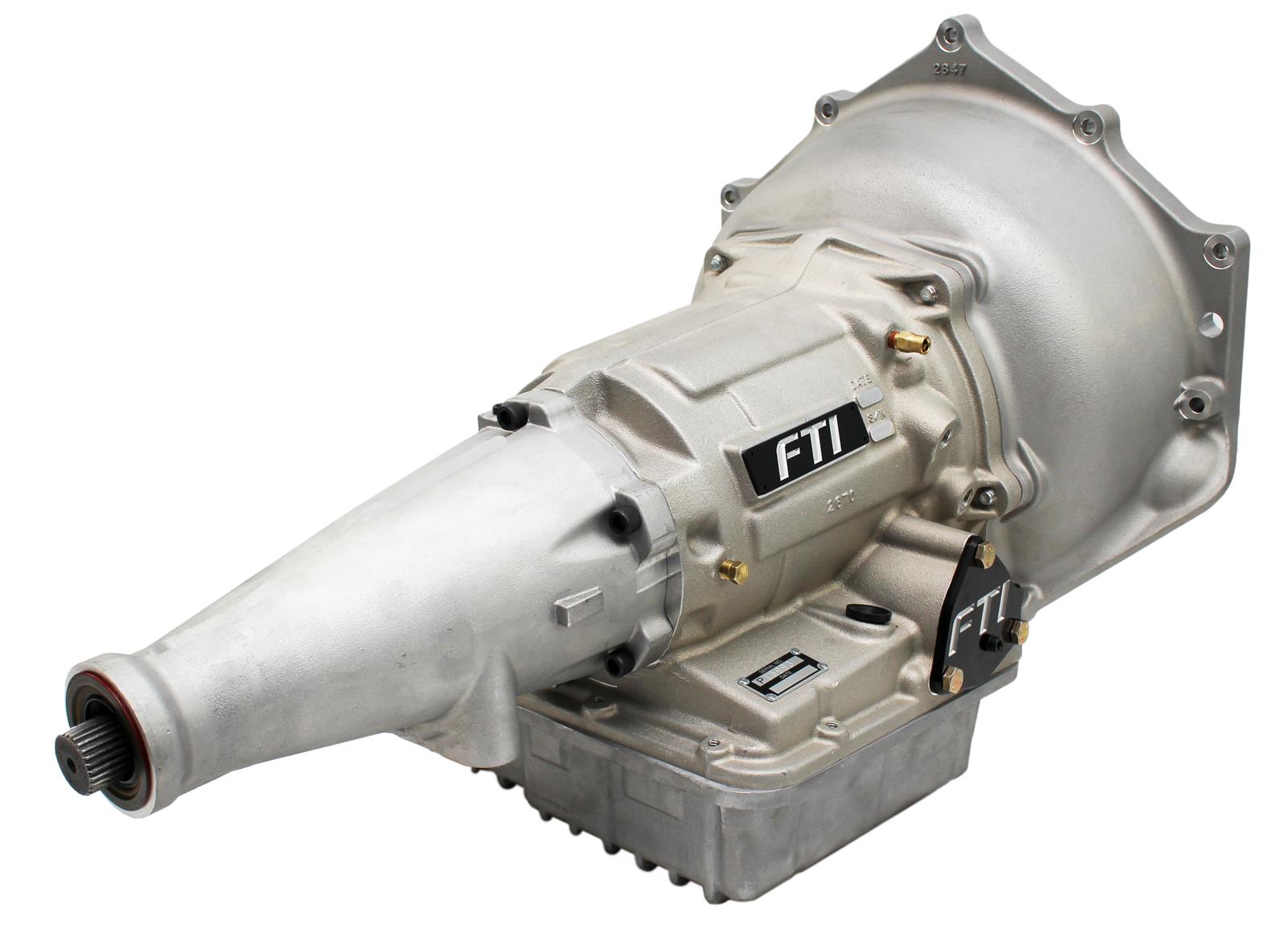

FTI Performance Bracket Series Powerglide Level 5 Transmissions
With an SFI-certified case, all-new internal parts, and 8-clutch drum, FTI Performance Bracket Series Powerglide Level 5 transmissions are ready to roar! Their billet aluminum valve body, 1,500 hp rating, ER100 material input, and 4340 output shafts scream strength and durability. Bracket racers live and die by consistency—be prepared with an FTI Bracket Series Powerglide Level 5 transmission, available in standard length and shorty models.
