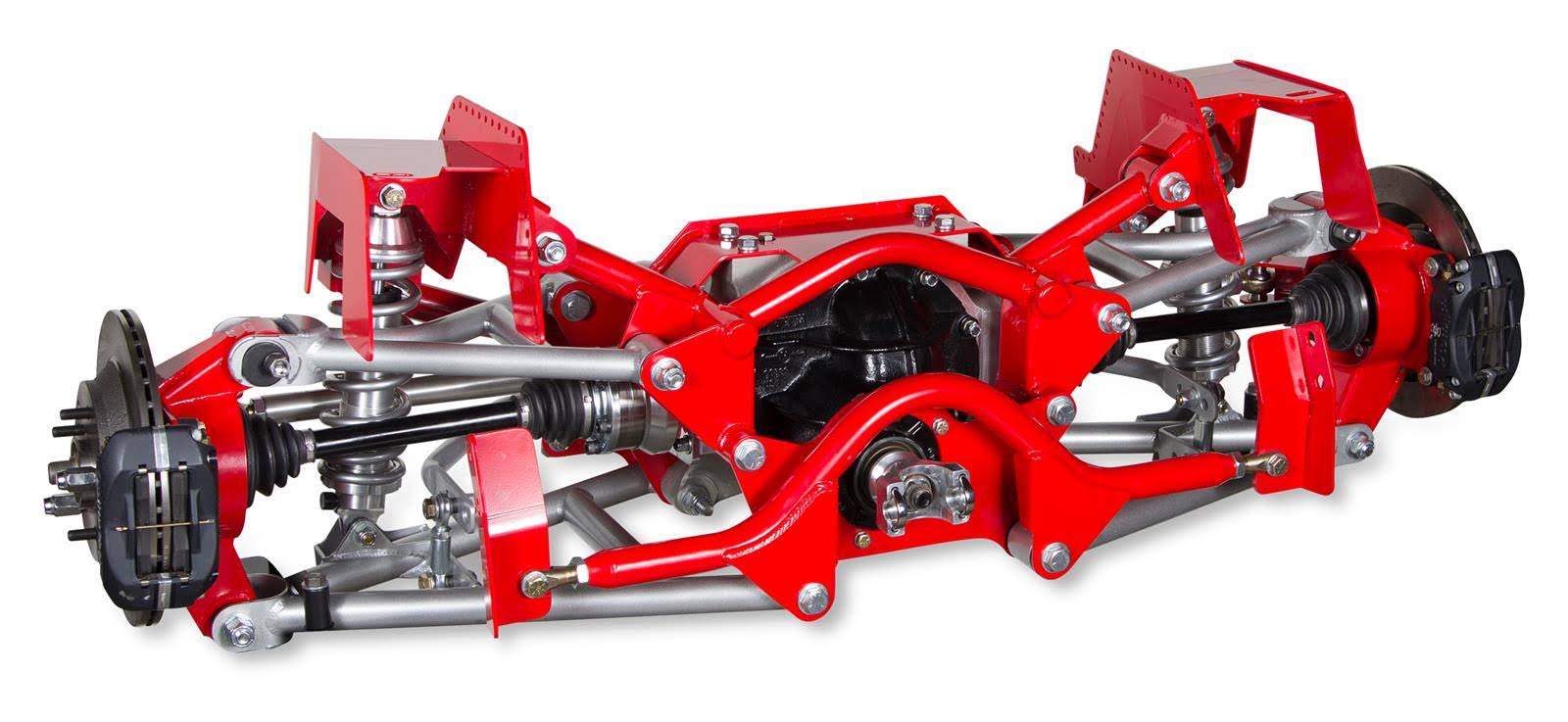

Heidts Pro-G Independent Rear Suspension Kits
Heidts Pro-G IRS suspension kits are designed to bring the superior ride and handling of independent rear suspension to your muscle car. Out-handle the competition and put all of that horsepower to the ground. Heidts Pro-G IRS suspension kits produce 1/2 degree of camber curve at 3/4 of bump, especially during very high cornering loads. Features include: * Cast iron Ford 9 in. center section mounted in an aluminum housing * 31-spline posi-traction hooked up to heavy-duty half shaft CV joint axle shafts * Tubular upper and lower control arms * Steel outer uprights * Top crossmember * Frame mounting brackets * Wilwood rear brake rotors and calipers * Billet aluminum single adjustable coilover shocks with silver powdercoated springs
Overview
Brand:
Heidts
Manufacturer’s Part Number:
IRC-800
Part Type:
Rear Suspension Packages
Product Line:
Heidts Pro-G Independent Rear Suspension Kits
Summit Racing Part Number:
HDT-IRC-800
UPC:
00887753178817
Third Member Included:
No
Third Member Case Style:
Ford 9 inch
Third Member Case Material:
Aluminum
Pinion Support Material:
Steel
Pinion Support Finish:
Natural
Axle Shafts Included:
No
Upper Control Arms Included:
Yes
Lower Control Arms Included:
Yes
Control Arm Style:
Tubular
Control Arm Material:
Steel
Control Arm Color:
Natural
Air Bags Included:
No
Rear Shocks/Struts Included:
Yes
Rear Shock Type:
Single adjustable coilover
Coilover Springs Included:
Yes
Spring Finish:
Gray/Silver
Suspension Package Finish:
Bare
Bushings Included:
Yes
Bushing Material:
Polyurethane
Bushing Color:
Black
Sway Bar Included:
Yes
Sway Bar Diameter (in.):
0.875 in.
Sway Bar Diameter (mm):
22.00 mm
Watts Link Included:
No
Panhard Bar Included:
No
Adjustable Panhard Bar Included:
No
Upper Trailing Arms Included:
No
Adjustable Upper Trailing Arms Included:
No
Lower Trailing Arms Included:
No
Adjustable Lower Trailing Arms Included:
No
Trailing Arm Mount Braces Included:
No
Trailing Arm Hardware Included:
No
Rotors Included:
No
Calipers Included:
No
Quantity:
Sold as a kit.
Notes:
This is the base kit with no differential, axles, or brakes. Specify spring rate when ordering.
